Major Tool & Machine has over 40 state of the art, computer numerically controlled (CNC) machine tools for the precision manufacture of customer’s components. With high-end machines from the greatest machine builders in the world such as:
Cincinnati Milacron, Giddings & Lewis, Mazak, DMG Mori Seiki, Gruppo Parpas, JOBS, Berthiez, and Dorries Scharmann Schiess (DSI)
Our capabilities allow us to cut, mill, and turn a wide variety of metals up to 90 feet.
CNC Turning
Froriep Spheromill 5-Axis
327"X, 152"Y, 80"Z, 108" W (cross-rail), 200 deg. A, 228" table dia. w/ 526" max swing
154" max height to cross-rail
140,000 lbs table capacity
Fanuc Control
Berthiez VTL - TDM 250 (Medium)
155"X, 63"Z, 48"W (cross-rail), w/ 162" max swing
97" max height to cross-rail
44,000 lbs table capacity
Siemens 840D Control
Two Fives Giddings and Lewis VTC 2500
122"X, 68"Z, 49"V (cross-rail)
Y-Axis head attachment for 5-axis contour milling
66,000 lbs Table Capacity, 25 Tool, Tool Changer
Spindle Speed – 30 hp [22 kw]
Adjustable Rail with Live Spindle
Siemens 840D Control
Farrel VTL
120"X, 70"Z, 112"W (cross-rail), 192" table dia. w/ 204" max swing
136" max height to cross-rail
150,000 lbs table capacity
Siemens 840D Control
Berthiez VTL - LGM 280 (Large)
162"X, 63"Z, 99"W (cross-rail), two live spindles w/ side head, w/ 168" max swing
137" max height to cross-rail
Two (2) 2,110" dia. pallets, 100,000 lbs table capacity
Siemens 840D Control
Mazak Integrex e670H
21"X, 26"Y", 162"Z, 153"W (tailstock stroke)
5-Axis Milling and Turning
SMW Autoblok Steady Rest
Adjustable Tailstock
Mazatrol Control
Dorries Scharmann Schiess (DSI) FZG6 Gantry Mill/Turn
720"X, 372"Y, 98"Z, 118"W, 200 deg. A, endless C, 236" table dia. w/ 259" max swing
223" max height to cross-rail
280,000 lbs table capacity
100 Horsepower Live Spindle, 200 hp Turning Table
Turning up-to 21 ft. (6.5 m) and 15 ft. (4.5 m) in Z
Tool Changer, 120 Tools + Tool and Part Probe
Siemens 840D Control
Longest Heidenhain absolute scales installed in the United States

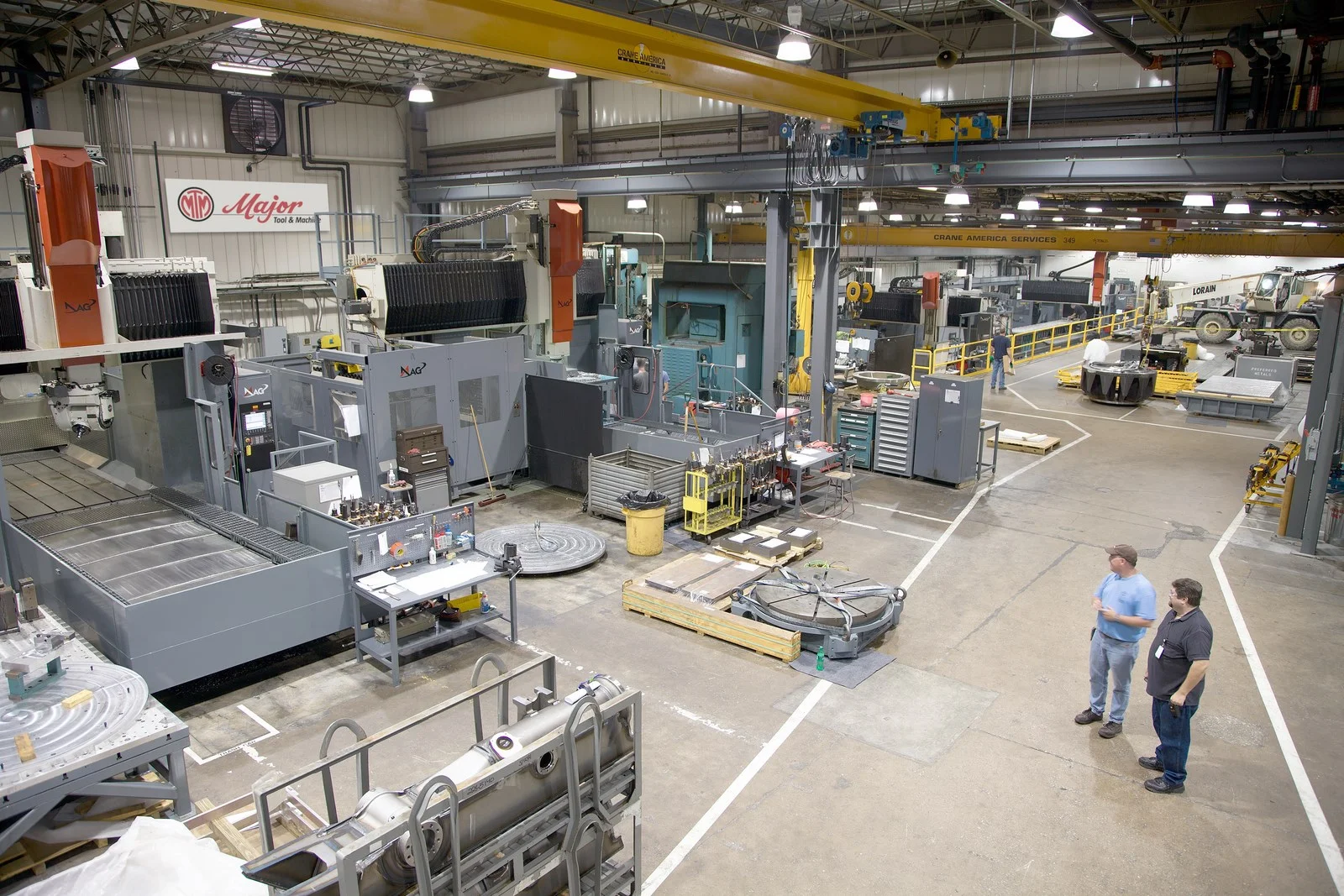

Cincinnati Milacron U5 Bridge Mills
157"X, 91"Y, 40"Z, 190 deg. A, endless C
74" max height to cross-rail
Spindle Power – 30 Horsepower [22 kW]
Automatic Speed Selection Ranges: 40-6,000 RPM
20,000 lbs Table Capacity, 60 Tool, Tool Changer
Siemens 840D Control
FIVES Cincinnati U5-2500 XL
824"X, 197"Y, 98"Z, 200 deg. A, endless C
157" table dia. w/ 195" max swing
5-Axis Gimbal Head, Vertical Head
Right Angle Head, Turning Head
157” Turning / Contouring Table, 150 Ton Capacity
Tool Changer, 120 Tool + 6 position oversize Rack Tool Probe and Part Probe
Siemens 840D Control
Two Cincinnati Milacron U5 Rail Mills
1107"X, 100"Y, 40"Z, 190 deg. A, endless C
55" max height to cross-rail upper table, 79" to lower table
Spindle Power – 30 Horsepower [22 kW]
Automatic Speed Selection Ranges: 40-6,000 RPM
20,000 lbs Table Capacity, 60 Tool, Tool Changer
Siemens 840D Control
40ft Mitsubishi Horizontal Mill
498"X, 157"Y, 35"Z, 26"V, 115"W, B
100,000 lbs table capacity
Fanuc Control
Two Giddings and Lewis MC1600 Horizontal Boring Mills
189” X, 141” Y, 49” Z, 98” W, 360 deg. B
Spindle Power - 50 Horsepower [37.2 kW]
55,100 lbs Table Capacity, 90 Tool, Tool Changer
Siemens 840D Control
High-Speed Machining
Gruppo Parpas XS 20.4, 5-axis Gantry Mill
65'.6’ x 14.7’ x 5.75’, +/- 110 deg A Axis, infinite C
Automatic spindle change: 7,000 RPM, 15,000 RPM, 27,000 RPM, up to 60 kW
Feed speeds up to 2,400 inches per minute
All structural components are climate controlled
Integrated rotary table
Gruppo Parpas XS 10.4, 5-axis Gantry Mill
32.8’ x 14.7’ x 5.75’, +/- 110 deg A Axis, infinite C
Automatic spindle change: 7,000 RPM, 15,000 RPM, 27,000 RPM, up to 60 kW
Feed speeds up to 2,400 inches per minute
All structural components are climate controlled
Integrated rotary table
JOBS Linx High Speed, 5-axis Gantry Mill
322"X, 143"Y, 59"Z, 215 deg A, 400 deg C
Spindle 1: 48 HP @ 27,000 RPM
Spindle 2: 48 HP @ 15,000 RPM
Linear motors on X,Y,Z, Speeds Up To 164 ft / min
1,000 lbs per square ft table capacity
Flexible Manufacturing Cell
Flexible Manufacturing Cell - Cincinnati Milacron T35 & T40
Work Space – 64 in x 60 in
Weights up-to 5,500 lbs.
2,800+ Machine Hrs/Mo.

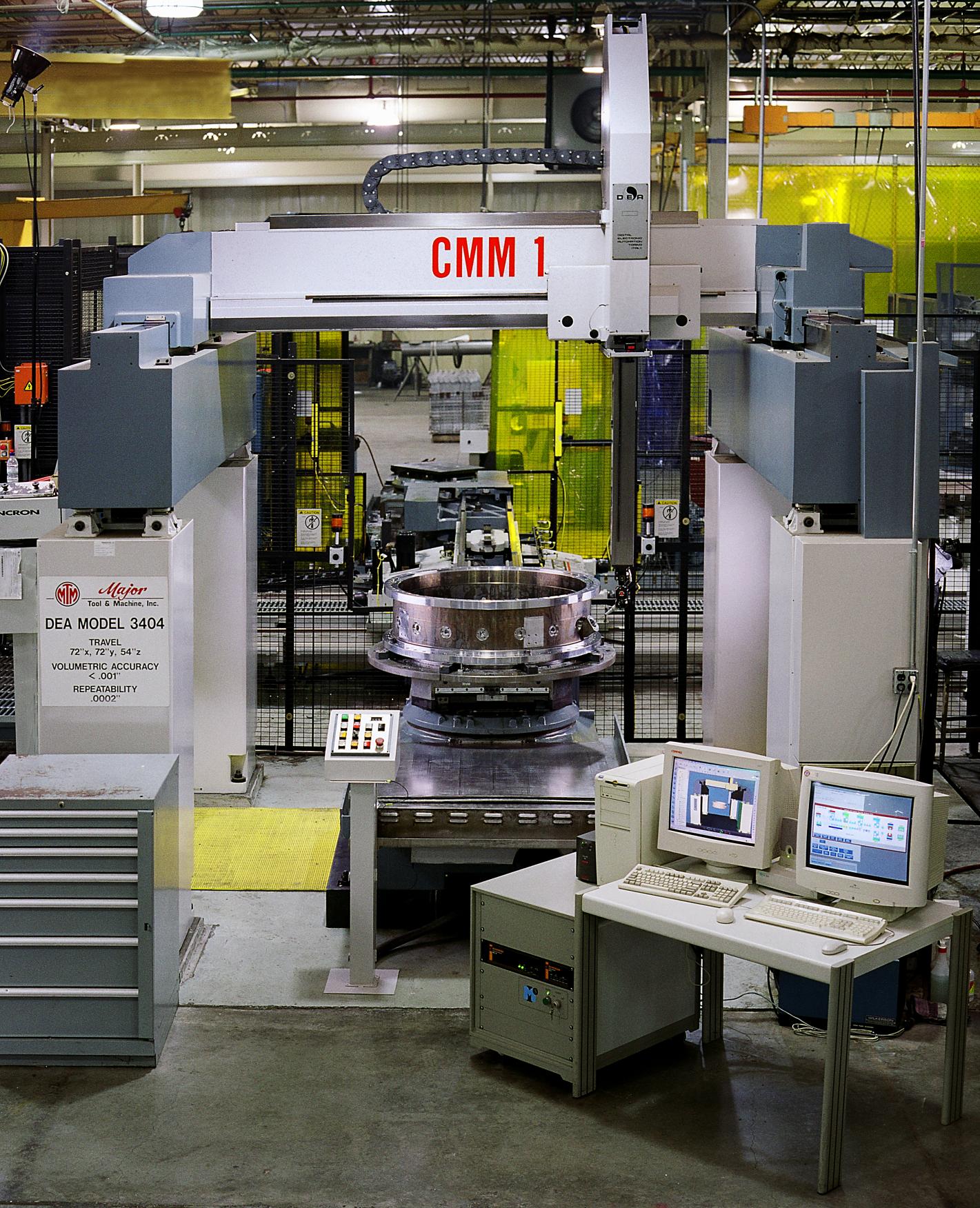

Flexible Manufacturing Cell - CMM
Four - Cincinnati Milacron T35 N, 5-axis, twin pallet
Two - Giddings & Lewis VTC 1600 Lathes
One - Integrated DEA CMM
Two - Integrated Load/Unload Stations
Flexible Manufacturing Cell - Schiess VTL
CINCRON Cell Controller controls Pallet System & Machine Tools
“Smart Chips” in Each Tool
Tool Room
Two DMG Mori Seiki DMU 50 eco
24"X, 17.7"Y, 15.7"Z
Siemens 840D Control
Two Romi Lathes
Robotic Welding
Motoman Robotic Welding

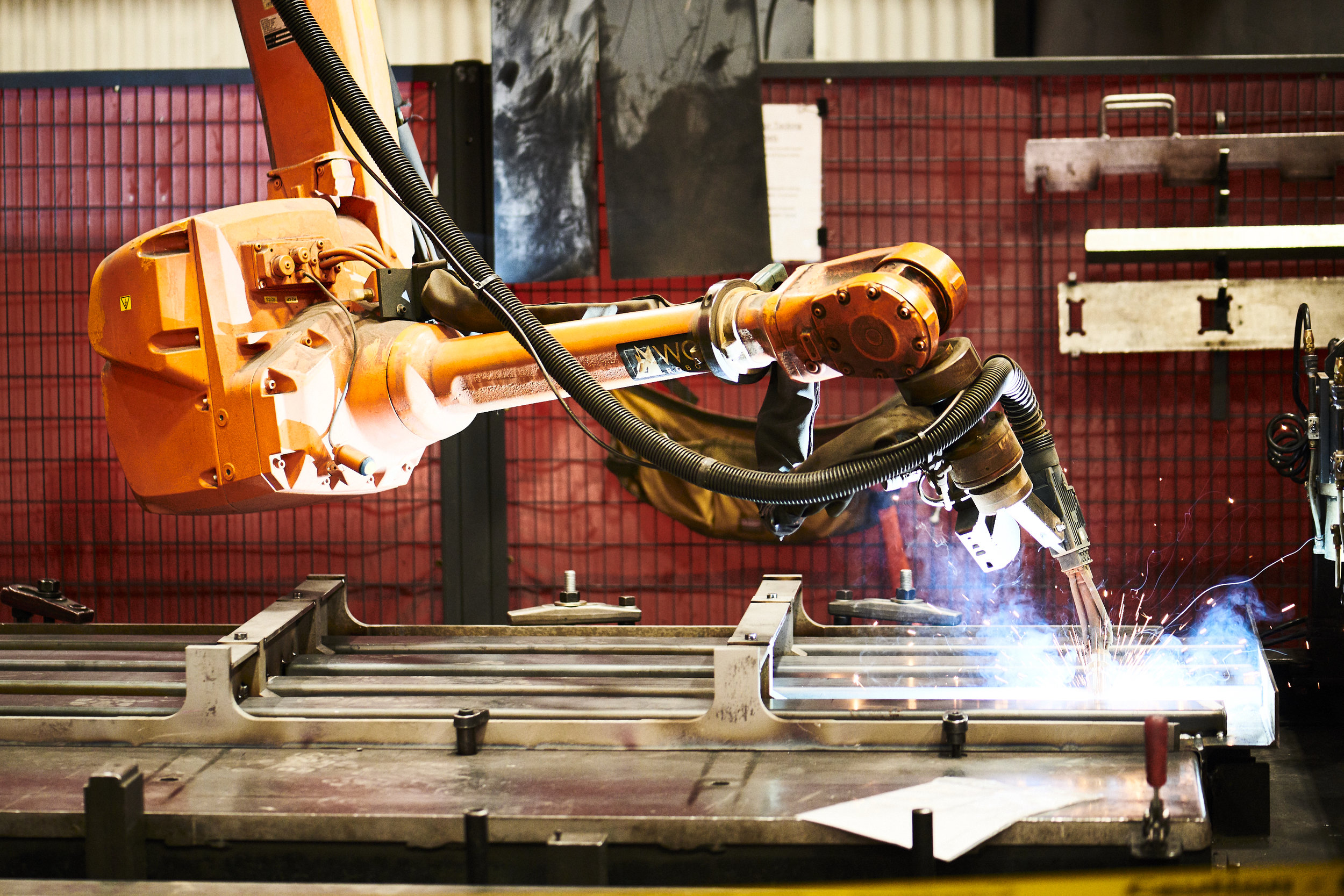

Wolf Robotic Welding
Motoman Robotic Welding
Material Processing
Material Processing - ESAB Avenger 3-7 Burn Table
700” X, 200” Y1, 200” Y2, 200” Y3
Prima Industries Optimo 5 kW 5 Axis Laser
177” X, 98” Y, 40” Z, Integrated Rotary Table
Material Processing
Material Processing - DAVI Plate Rolling
3.5” thick x 10’ wide
